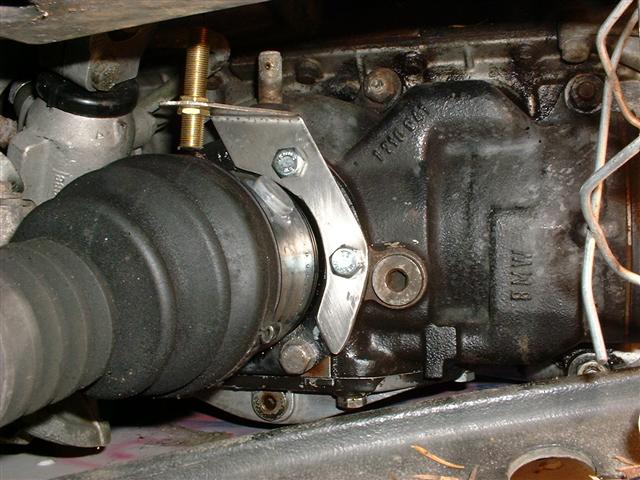

Odometer sensor mounting on the BMW 325iX For both TeamD BMW 325iX vehicles we use a hard mounted sensor with magnets. The sensor is mounted on the inboard side of the drive shaft with steel bracket mounted to the front differential. The magnets are attached to the bearing housing of the driveshaft. The inboard location on the front of the iX has the benefit of being above and behind the stock splash guard. This, in combination with the sensor being mounted above the shaft protects both the magnets and the sensor.
|
|
|
